Eliciting and Improving the Causal Reasoning Abilities of Large Language Models with Conditional Statements Open Access

Humans rely heavily on the capacity for causal reasoning (Sloman 2005; Hagmayer et al. 2007). People understand the observed facts, predict future events, and speculate about what might have happened if things had been different with the help of their causal reasoning skills. For instance, when we go home and find a mess, we probably want to investigate the cause. If we determine that a bird flew into the house, we may then consider whether the mess could have been avoided if we had closed the window.

Although large language models (LLMs) demonstrate great language understanding and generation abilities, it is still challenging for them to perform complex causal reasoning such as in the example above. Powerful LLMs are able to understand single cause-and-effect relations (Brown et al. 2020; Wang et al. 2021b), like a man losing his balance causes him to fall. However, when it comes to more complex causal structures involving multiple events and alternative branches (like close the window or not), LLMs perform much inferior to humans (Bhagavatula et al. 2019; Qin et al. 2019). In this article, we consider two challenging causal reasoning tasks: abductive reasoning and counterfactual reasoning. Abductive reasoning requires models to generate a plausible reason for the ending while being consistent with the premise. Counterfactual reasoning asks what will occur in the counterfactual branch. Causal relationships between events in these tasks are shown in Figure 1.

A potential difficulty for LLMs to learn complex causal structures is that they are rarely expressed explicitly in the text. News articles or narratives may contain multiple events with causal relationships, like an incident and a chain of consequences. However, these events are often written chronologically, and it is hard to distinguish the real causal relations from many chronological relations without further annotation. Branches are expressed more rarely in text, except for the multibranching storytelling style (Nisi and Haahr 2006). On the other hand, causal relations are exhibited more commonly in code. Conditional statements like if direct the computer to execute certain commands, provided a condition is met. This explicitly demonstrates the causal relationship between the condition block and the execution block. Code can also express branching with elif or switch statements, and the nesting feature enables code to describe more complex structures.²

This motivates us to utilize code models in natural language causal reasoning. Recently, large language models of code (Code-LLMs) are receiving increasing attention (Chen et al. 2021; Xu et al. 2022; Lai et al. 2023). They exhibit strong code generation performance, and their structured prediction abilities help complete structured natural language tasks like argument graph generation (Madaan et al. 2022) and event argument extraction (Wang, Li, and Ji 2022). Pre-trained on code with abundant causal expressions, Code-LLMs may also have gained better causal reasoning abilities. This leads to our first research question, are Code-LLMs better causal reasoners than general-purpose LLMs? We are also interested in whether a broader range of models besides Code-LLMs benefit from the utilization of code prompts in causal reasoning. Code prompts have been shown to help general-purpose LLMs on tasks like conditional question answering (Puerto et al. 2024) and agent reasoning (Wang et al. 2024), due to their strengths in clearly describing the task structure and tracking the control flow. In the second research question, we investigate whether code prompts better describe the causal structure than text prompts.

We conduct experiments on the unsupervised abductive reasoning and counterfactual reasoning tasks. To generate task outputs, we design code prompts like Figure 2 to clearly represent the causal structures of the tasks. For events that have a definite causal relation, we organize them with if statements. For branches with different conditional events, we use if-elif structures. And for other events, we place them in chronological order. We experiment with a wide range of LLMs, including general-purpose LLMs like Mixtral and Gemini, and Code-LLMs like CodeLlama and Codex. To compare general-purpose LLMs and Code-LLMs without interference like model structure and training methods, we carefully select pairs of LLMs like < Llama-2, CodeLlama >, and < GPT-3, Codex >. They share the same structure and only differ in the ratio of text/code training corpus. Results show that Code-LLMs perform much better than corresponding general-purpose LLMs. We further compare the performance of code prompts and text prompts, and find that code prompts work better for all the Code-LLMs and most general-purpose LLMs, indicating the effectiveness of code prompts.

To better understand why code prompts are effective, we break down the prompts and analyze the influence of different aspects, including the information provided in the prompts, the programming structure, the prompt format, and the programming language used in the prompts. Results demonstrate that LLMs are very sensitive to the programming structure (specifically, the conditional statements), while being more robust towards format perturbations and programming language changes.

Given the observation that conditional statements are important in code prompts, we investigate if they help in further improving the causal reasoning abilities of LLMs. Specifically, we collect a code corpus of conditional statements, and finetune LLMs on this corpus. Experiments show that both the code corpus and the conditional statements in code contribute to model performance. The finetuned LLMs perform better on causal reasoning with code prompts, and more importantly, their performance also improves when prompted with text prompts. This demonstrates that finetuning with a code corpus of conditional statements not only enhances their understanding of codes, but also enhances the general ability of causal reasoning.

Our main contributions are as follows:

1. We design code prompts to tackle causal reasoning tasks, by leveraging conditional statements in code to represent causal structures.

2. We evaluate a wide range of LLMs with code prompts and text prompts on unsupervised abductive reasoning and counterfactual reasoning tasks. Experiments exhibit that Code-LLMs are better causal reasoners than general-purpose LLMs, and code prompts are more effective than text prompts for most models.

3. We break down the code prompts in detail and find that the programming structure largely influences the performance.

4. We show that simply finetuning LLMs on a code corpus of conditional statements could improve their causal reasoning abilities.

There is a growing interest in the NLP community to assess the causal reasoning abilities of models. The first line of work focuses on whether models can extract the causal relations from text. The task of causal relation extraction asks models to identify cause-effect relations between pairs of entities in text (Beamer, Rozovskaya, and Girju 2008; Blanco, Castell, and Moldovan 2008; Yang, Han, and Poon 2022). Girju et al. (2007) and Hendrickx et al. (2010) annotate cause-effect relations on general-purpose text like Wikipedia, whereas Pyysalo et al. (2007) and Gurulingappa et al. (2012) evaluate models on specific domains like biology and medical science. The second line of work is interested in whether models can conduct commonsense causal reasoning. This requires models to have knowledge of causal relations in daily lives, and apply this knowledge to specific scenarios. Gao et al. (2023) and Kıcıman et al. (2023) analyze the mastery of causal knowledge like cause-effect pairs, and Zečević et al. (2023) explore how models learn the causal knowledge from training data. Roemmele, Bejan, and Gordon (2011) require models to predict the cause or effect of a given premise, while Bhagavatula et al. (2019) and Qin et al. (2019) assess models’ abilities to apply the causal knowledge to more complex abductive reasoning and counterfactual reasoning scenarios. Recently, there are also works evaluating if models can conduct formal causal inference using existing principles and algorithms. Jin et al. (2023) investigate if models can infer causal relations from conditional statements, and Jin et al. (2024) and Liu et al. (2024) evaluate the utilization of causal inference skills. In this work, we mainly focus on commonsense causal reasoning, as this ability is important in human everyday life (Sloman 2005).

Diverse methods are proposed to equip models with causal reasoning abilities. To help models extract causal relations from text, Chang and Choi (2005) measure causality between words and phrases with statistical methods, and Li and Mao (2019) use semantic cues with neural networks. To guide models to conduct formal causal inference, Jin et al. (2023) finetune models on the specific task of correlation-to-causation inference, and Liu, Feng, and Chang (2024) break down the causal reasoning process into individual steps with prompting. To improve the commonsense causal reasoning abilities, Li, Chen, and Van Durme (2019) finetune LLMs on causal event corpus; Du et al. (2021) and Wang, Cheng, and Li (2022) augment LLMs with causal knowledge graphs. Zhang et al. (2022) apply causal inference methods like propensity score matching to obtain more accurate causal knowledge. Qin et al. (2020, 2022) and Chen et al. (2022) regard commonsense causal reasoning as conditional generation tasks, and design methods to generate texts that meet the given conditions. In contrast to them, we explore how to elicit the causal reasoning abilities acquired by LLMs during pre-training, and how to further improve their causal reasoning abilities with general training corpus like code.

Code-LLMs are created to improve LLMs’ performance on code-related tasks such as code generation (Chen et al. 2021; Lai et al. 2023) and program repair (Monperrus 2018; Fan et al. 2023). They are LLMs that are specially designed to understand and work with code (Xu et al. 2022; Zheng et al. 2023). Initially, Hindle et al. (2016) train n-gram models to conduct code completion. Encoder models and encoder-decoder models are then used as architectures of code models (Feng et al. 2020; Wang et al. 2021a). Nowadays, decoder-only architectures have become the most prevalent choice (Roziere et al. 2023; Guo et al. 2024). A main difference between the training of Code-LLMs and general-purpose LLMs is the data selection. Although general-purpose LLMs use code data like GitHub and Stack Exchange in training (Touvron et al. 2023a; Jiang et al. 2024), code data makes up a larger portion of the training data of Code-LLMs, and covers various programming languages (Li et al. 2023; Guo et al. 2024). Besides the training data, Code-LLMs are also enhanced with specific abilities. Roziere et al. (2023) and Guo et al. (2024) enhance models with the infilling ability through the Fill-in-the-Middle pretraining method (Bavarian et al. 2022). This helps models to predict the missing code block given the surrounding context. Several models also support long context understanding to deal with repository-level code (Roziere et al. 2023; Bai et al. 2023).

With the recent development of Code-LLMs, several studies attempt to solve natural language tasks with code models. They mainly focus on two areas: numerical reasoning and structured prediction. Gao et al. (2022), Chen et al. (2023a), and Wu et al. (2022) apply Code-LLMs to numerical reasoning. They generate programs with Code-LLMs and feed the programs into an external interpreter to derive the answer. Madaan et al. (2022), Hu et al. (2022), Wang, Li, and Ji (2022), and Kim, Schuster, and Toshniwal (2024) leverage the text-to-structure translation ability of Code-LLMs to perform structured prediction tasks, including script generation, entity state tracking, event argument extraction, and so on. Madaan et al. (2022) ask models to generate structures in the form of code, and convert the generated code into the task output format. Chen et al. (2023b) extend this line of works to visual structural knowledge extraction and apply Code-LLMs to depict visual structural information. In addition, Mueller et al. (2024) find that Code-LLMs are better in the in-context learning setting, using in-context examples to generalize more robustly, and Petty, van Steenkiste, and Linzen (2024) find that adding code in model training improves performance on compositional generalization tasks with structured outputs. Different from them, we leverage the causal reasoning ability of Code-LLMs, and ask them to generate natural language events given the causal structure.

Compared with natural language, code has several advantages that make it suitable for reasoning tasks (Wang et al. 2024; Yang et al. 2024): (1) Structure and Logic. Code is well-organized with clear executable steps. This structure allows for reasoning based on defined procedures and logic. (2) Modularity and Reusability. Code breaks down complex problems into smaller, reusable functions. This makes it easier to follow the reasoning process and reuse steps for different tasks. (3) Control Flow. Code can handle conditional statements and loops. This allows for reasoning with conditions and repetitions, making it suitable for complex tasks. (4) Composition. Code supports calling multiple functions sequentially or nestedly. This helps to compose different abilities or tools in reasoning.

These features make code formats not only useful for the reasoning of Code-LLMs, but also benefit general-purpose LLMs. Bogin et al. (2023) leverage the advantage of code in describing structures. They use programming languages to describe domain-specific information such as types of entities, attributes, and methods. Models prompted with such structured domain-specific information show great improvement in semantic parsing. Wang et al. (2024) exploit the modularity and composition nature of code in agent reasoning. They propose the CodeAct framework, which uses Python code to organize all actions for agent-environment interaction. CodeAct exhibits strong performance on several agent reasoning benchmarks, especially when required to solve complex tasks with multiple tools. Puerto et al. (2024) apply code prompts to the task of conditional question answering, building on the strength of code in handling logical and control flows. They find the code syntax useful in eliciting the conditional reasoning abilities of general-purpose LLMs, and the performance boost originates from the advantage of identifying and tracking variable states with code. However, prompting LLMs in the format of code is not useful for every task. Zhang et al. (2023) evaluate GPT models on twelve various tasks, and find that code prompts perform worse than text prompts on question answering and summarization tasks. This shows that the choice of code or text format should be determined by the nature of the task. In this work, we explore the specific task of causal reasoning, where the code format helps in clearly describing the structure and control flow of events.

LLMs can also benefit the code execution in reasoning. Code is executable, allowing models to use the outcome of the reasoning process. Chen et al. (2023a) design the Program-of-Thought prompting strategy. It asks models to generate a code program given a question, and regard the output of the code as the answer. Code execution also provides a concrete way to identify any errors and further improve the code. Ni et al. (2023) use the execution results to verify and re-rank the generated programs. Wang et al. (2023b, 2024) ask models to reflect on the previous plans based on feedback from code execution.

We formulate abductive reasoning and counterfactual reasoning as unsupervised learning tasks. They are conducted in the manner of zero-shot learning, requiring models to conduct reasoning based on the task descriptions.

Abductive reasoning, a form of inference that seeks the most plausible explanation for a set of observations (Peirce 1974), plays a critical role in human cognition. It allows us to navigate the world by drawing conclusions based on incomplete information, which is a skill central to language acquisition and discourse comprehension (Hobbs et al. 1993).

We explore the application of abductive reasoning within the framework of natural language processing. We focus specifically on Abductive Natural Language Generation (αNLG), a task proposed by Bhagavatula et al. (2019) that challenges NLP models to generate plausible explanations bridging two given observations. It involves generating a plausible hypothesis H given the observations: premise O_P and ending O_E. Formally, models are required to maximize the probability P(H|O_P, O_E).

This task necessitates non-monotonic reasoning, requiring the model to consider not only the preceding information O_P but also the future context provided by the ending sentence O_E. The chronological order of these three events is $OP→H→OE$⁠, and the hypothesis causes the ending to occur.

Counterfactual reasoning, the ability to contemplate alternative scenarios that diverge from observed realities, is important in human cognition (Epstude and Roese 2008). This capacity to explore “what if” possibilities extends across various disciplines, and has emerged as a promising avenue for understanding causal relationships and narrative coherence in NLP researches (Hobbs 2005; Son et al. 2017; Qin et al. 2019).

Counterfactual reasoning offers a unique approach to studying causality in narratives. By introducing a causal intervention—a change to the initial context of a story—we can observe the subsequent impact on the narrative’s conclusion. We follow the formulation of counterfactual reasoning proposed by Qin et al. (2019). It aims to rewrite a story under a counterfactual condition. As in Figure 1, the input consists of four parts: the premise P, the initial context C, the original ending E, and the counterfactual context C′. C′ contradicts the information presented in C, and this contradiction makes it necessary to change the ending. Models are asked to generate the counterfactual ending E′ that minimally modifies the original ending E and is coherent with the counterfactual context C′. The goal can be formulated as maximizing the function f(E′|P, C, E, C′) = P(E′|P, C′) + λsim(E′, E), where sim measures the similarity between two events, and λ controls the trade-off between the two constraints.

Achieving minimal edits requires the model to possess a deep understanding of the core elements driving the narrative. This allows the model to differentiate between genuine causal relationships and spurious correlations, and how they are affected by counterfactual scenarios.

As the events of both tasks are originally collected through crowd-sourcing, we conduct a quality check of the events in Appendix A, and find that 94% of them are grammatically and semantically acceptable. We leave the refinement of the unacceptable events to future work.

We convert the input of causal reasoning tasks into the form of code prompts, given the strength of code in depicting the structure and control flows. We expect the prompts to meet two requirements: (1) clearly represent the causal relationships between events, and (2) as most LLMs are autoregressive, the target output should appear at the end of the prompts.

The first requirement is addressed with conditional statements. However, for the second, the target prediction is not always the last part of the conditional statements—for example, in abductive reasoning, we want to predict the hypothesis, which is the condition in the if structure. To address this, we uniformly use functions to represent events. As shown in Figure 2, the causal structure is described in the main function. All the event functions are listed afterward, leaving the target event function at the last.

In Figure 2, we regard the task definition of abductive reasoning as an instruction and place it as a comment at the beginning of the prompt. As different LLMs are accustomed to different response lengths, we hint models to restrict the length of the hypothesis event to 20 words, which is close to the typical length of events in the dataset we use.

The causal structure is represented in the main function with the execution flow: executing the premise, and if the hypothesis is met, executing the ending.³ The content of each event is presented as a comment on its function. We represent events with comments because in real code, comments often summarize the main content of the function. The premise and ending functions are placed after the main function, and the hypothesis function is placed at the last, leaving for models to complete. The generation process stops with a line break.

The task of counterfactual reasoning involves more events, and the causal structure is more complex with branches. The causal relationships are represented with the if-elif structure, as shown in Figure 3. The premise P is executed first, and then if the initial context C is met, the original ending E is executed; otherwise, if the counterfactual context C′ is met, the counterfactual ending E′ will be executed. For ease of exposition, we call the context hypothesis as well, being consistent with the former task. We number the two branches as the hypothesis_1 and hypothesis_2 functions, and they correspond to the ending functions ending_1 and ending_2, respectively.

The task definition is put at the beginning of the prompt in the form of content, and we also prompt models to limit the sentence length to no more than 20 words. To instruct models to minimally modify the original ending, we place this requirement in the comment of the main function. The event contents are also written as comments for event functions. We use # end to mark the finish of the ending.

We conduct extensive experiments to evaluate the unsupervised causal reasoning abilities of various LLMs with both code and text prompts. In this section, we aim to answer the following research questions, from the aspects of models and prompts:

• RQ1. Are Code-LLMs better causal reasoners than general-purpose LLMs?

• RQ2. Do code prompts better describe the causal structure than text prompts?

We experiment on the ART dataset (Bhagavatula et al. 2019) for the evaluation of abductive reasoning, and the TimeTravel dataset (Qin et al. 2019) for counterfactual reasoning.

ART consists of 3,561 test instances. The observations of premise and conclusion are collected from ROCStories (Mostafazadeh et al. 2016), a large corpus of five-sentence stories written by humans. The first sentence is regarded as the premise O_P and the last sentence is regarded as the ending O_E. The plausible hypotheses H are annotated by crowdsourced annotators, and an average of 4.02 hypotheses are collected for each instance.

TimeTravel is also built upon ROCStories, containing 1,871 test instances. The five-sentence stories of ROCStories are used as original stories. The first sentence is the premise P, the second sentence is the initial context C, and the last three sentences make up the original ending E. A group of crowdsourced workers is asked to write counterfactual contexts C′ for the stories. Another group of workers is instructed to write the counterfactual endings E′. They make minimal edits to the original ending, aiming to make the narrative coherent. Three conditional endings are gathered for each instance.

We experiment with two types of models, general-purpose LLMs and Code-LLMs. For general-purpose LLMs, we choose Llama-2 (Touvron et al. 2023b), Qwen1.5 (Bai et al. 2023), Deepseek-LLM (Bi et al. 2024), Mixtral (Jiang et al. 2024), Gemini (Team et al. 2023), and GPT-3 (Brown et al. 2020). Both open-source and closed-source models are considered. Among open-source models, we use the 7B-chat version of Llama-2, Qwen1.5, and Deepseek-LLM, and the 8×7B-instruct-v0.1 version of Mixtral. Among closed-source models, we use the APIs of Gemini-Pro and the text-davinci-002 version of GPT-3. For Code-LLMs, we experiment with two open-source models, CodeLlama (Roziere et al. 2023) and CodeQwen1.5 (Bai et al. 2023), and a closed-source model, Codex (Chen et al. 2021). The specific versions are 7B-instruct for CodeLlama, 7B-chat for CodeQwen1.5, and code-davinci-002 for Codex. We set the temperature to 0 and the maximum length of output tokens to 256 for all models during inference.

Among the models, we intentionally select three pairs of <general-purpose LLM, Code-LLM > that share the same structure: < Llama-2, CodeLlama >, < Qwen1.5, CodeQwen1.5 >, and < GPT-3, Codex >. The difference between models in a pair is the training corpus. CodeLlama is initialized with Llama-2 and trained on a code-heavy dataset. CodeQwen1.5 is built upon Qwen1.5 and pretrained on 3 trillion tokens of code-related data. GPT-3 (text-davinci-002) originates from Codex (code-davinci-002) and is finetuned with instructions. Comparing performance of these models allows us to make comparisons without confounding factors like model structure and training strategies.

We also compare with previous unsupervised methods on the two tasks, including Delorean (Qin et al. 2020), Cold (Qin et al. 2022), and Diffusion (Li et al. 2022) on abductive reasoning; and CGMH (Miao et al. 2019), EduCat (Chen et al. 2022), Delorean, and Cold on counterfactual reasoning. All these methods except Diffusion use GPT-2 (Radford et al. 2019) as the base model, and the model size ranges from medium to XL.

Among them, Delorean and Cold are constraint-based models. They regard the task requirements as constraints (for example, the generated text should be consistent with the premise, and coherent with the ending in the abductive reasoning task), and iteratively update text representation to meet the constraints. CGMH and EduCat are editing-based models targeted for counterfactual reasoning. They start from the original ending and edit it to meet the counterfactual context. Diffusion builds a controllable LM based on continuous diffusions to perform control tasks including abductive reasoning.

To validate if the designed methods work on LLMs, we also add a baseline of implementing Delorean with Llama-2. We do not report other methods on LLMs because they are slow in inference or require additional training.

Besides code prompts described in Section 4, we design text prompts for comparison. Table 1 demonstrates the examples of text prompts. All the causal relations in Figure 1 are written in the text prompts, like there is a causal relation from the hypothesis to the ending, and a possible causal relation from the premise to the ending. Therefore the code and text prompts contain the same information. Considering that the description of causal relations may be difficult to understand for some models, we also try text prompts without the causal descriptions (removing the second paragraph of each prompt in Table 1), and report the higher performance for each model.

We use the following automatic evaluation metrics: BLEU₄ (Papineni et al. 2002), ROUGE_L (Lin 2004), CIDEr (Vedantam, Lawrence Zitnick, and Parikh 2015), and BERTScore (Zhang et al. 2019) based on BERT-base for abductive reasoning; BLEU₄, ROUGE_L, and BERTScore for counterfactual reasoning. These are consistent with previous methods (Qin et al. 2020; Chen et al. 2022; Qin et al. 2022) on these tasks.⁴

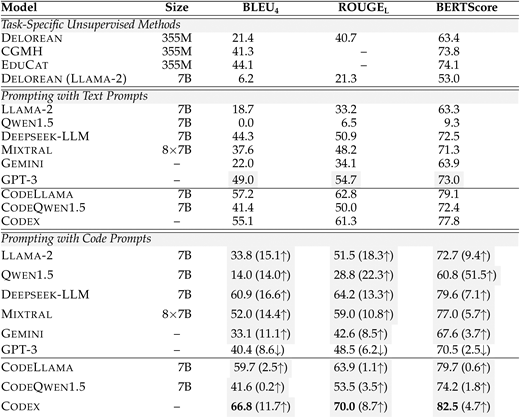

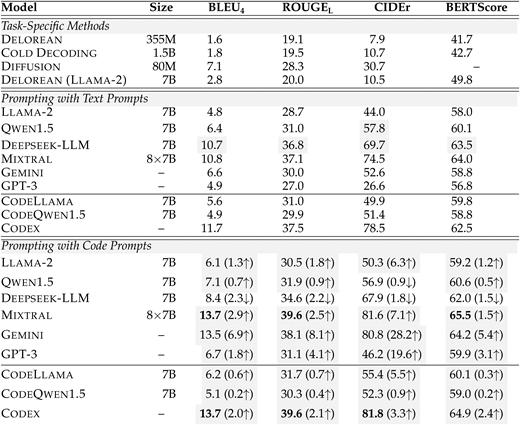

Table 2 reports the automatic evaluation results on abductive reasoning in the zero-shot setting, and Table 3 reports the results on counterfactual reasoning. In general, prompting LLMs outperform previous task-specific methods, indicating the rich commonsense knowledge and strong reasoning capabilities of LLMs. Equipping Llama-2 with Delorean decoding does not work well, showing that instructing the LLM of the constraints is more effective than modifying its representations to meet the constraints in our tasks. The difference in abductive reasoning measured by CIDEr is the most drastic, as CIDEr amplifies the effect of rare and unique words compared to other lexical overlap metrics like BLEU and ROUGE.

Comparing Code-LLMs with their corresponding general-purpose LLMs, CodeLlama and Codex outperform Llama-2 and GPT-3 on both tasks and both prompt formats, with an average gain of 14% measured by BLEU. Although CodeQwen1.5 is inferior to Qwen1.5 on abductive reasoning, it is much better than Qwen1.5 on counterfactual reasoning. These exhibit the strong causal reasoning abilities of Code-LLMs. Emphasizing the code data in the training corpus helps Code-LLMs to understand the causal relations. Although the GPT-3 (text-davinci-002) model is based on Codex, its causal reasoning ability may be weakened during instruction tuning, which is a phenomenon called alignment tax (Ouyang et al. 2022).

As shown in Tables 2 and 3, code prompts are better than text prompts for all Code-LLMs and most general-purpose LLMs, except for Deepseek-LLM and Qwen1.5 on one metric of abductive reasoning, and GPT-3 on counterfactual reasoning. Compared with text prompts, the performance of models prompted with code prompts is 5.1% better in BLEU and 5.3% better in BERTScore on average. The results indicate that describing the complex causal structure with code is clearer and easier for most models to understand.

We conduct additional experiments to analyze the performance fluctuations towards changes to prompt formats.

To investigate if changing the code prompts from pseudo-code to syntactically valid code will affect the results, we explore two simple settings: (1) add an empty return statement to the event functions, and (2) add a pass statement to the event functions. We experiment with three open-source LLMs: Llama-2, CodeLlama, and Qwen1.5. The results are shown in Table 4. Overall, making the code prompts syntactically valid improves the performance. The performance on counterfactual reasoning improves consistently, and the performance on abductive reasoning is impaired for some models to a small degree. This demonstrates the potential to further improve the performance by designing syntactically valid code prompts.

We also apply format perturbations (Sclar et al. 2024) to text prompts in Appendix B, showing that the performance of code prompts is consistently better than text prompts.

We also conduct experiments in the one-shot setting to validate if the trends exist when models are provided with examples. Models are shown with one demonstration example in the in-context learning manner, and the example is identical for all the models and both prompt formats. The results are in Table 5.⁵ All models perform better in the one-shot setting than in the zero-shot setting. Code-LLMs still outperform corresponding general-purpose LLMs in most settings, and code prompts are better than text prompts for most models, demonstrating that the advantage of Code-LLMs and code prompts is robust across different settings.

To verify if the automatic evaluation results are consistent with human judgment, we conduct pairwise comparisons between (a) Codex with code prompts and GPT-3 with text prompts, and (b) Mixtral with code prompts and text prompts. Each comparison is conducted on 100 test examples. Annotators are asked to choose which output is better given the task requirements. They are not provided with the reference answers in the dataset. For abductive reasoning, the outputs are rated from three aspects: coherence with the premise, coherence with the ending, and the overall coherence. For counterfactual reasoning, the outputs are rated from coherence with the context and the extent of preserving the original ending. Each example is rated by at least two annotators, and the average inter-rater reliability is 0.63. More details of the human evaluation are in Appendix C.

The results are exhibited in Table 6. Codex outperforms GPT-3 in all aspects. Codex better considers the context in generation, as shown in the coherence aspects. It is also able to preserve the original content in counterfactual reasoning, as shown in the preservation aspect. Fixing the model to Mixtral, prompting with code prompts outperforms prompting with text prompts in all aspects. Code prompts help the model to generate outputs that are more coherent with the contexts, and improve the preservation of the original content substantially. These further demonstrate the effectiveness of Code-LLMs and code prompts.

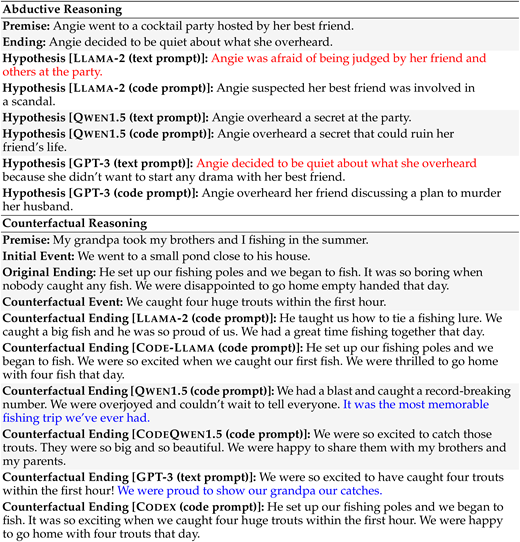

For a better insight into how models behave in the causal reasoning tasks, we conduct a case study by randomly selecting example cases for each task. Model generations for one example case are shown in Table 7, and two more cases are in Appendix D.

For abductive reasoning, we showcase generations of the same models with text prompts and code prompts, and find that the generations with code prompts are more coherent with the context, while generations with text prompts sometimes cannot take into account the premise. For example, the hypothesis generated by Llama-2 with text prompts does not explain why Angie was afraid of being judged by her best friend, and Angie decided to be quiet about what she overheard appears abruptly in the generation of GPT-3 with text prompts.

For counterfactual reasoning, we showcase generations of general-purpose LLMs and Code-LLMs in pairs. For each model, we use the prompt form that works better in the automatic evaluation. Counterfactual endings generated by most models are consistent with the premise and counterfactual event, but compared with Code-LLMs, general-purpose LLMs have more difficulties in preserving the original ending. Specifically, the output of Qwen1.5 is far away from the original ending, and the output of GPT-3 only has two sentences. In contrast, Code-LLMs better understand the relations between events. In addition to being coherent with the counterfactual events, the generated counterfactual endings also maintain the original endings to a large extent.

Code prompts are shown to be effective for both Code-LLMs and general-purpose LLMs. Naturally, we are interested in what makes the code prompts effective. To paint a better picture of the key points in the code prompts, we intervene on the prompts from four aspects and measure the influences of the interventions. Our goal is to answer the following research question in this section:

• RQ3. What aspects of the code prompts make them effective?

The four aspects we select are information, structure, format, and language. The former two, the prior information provided and the programming structure of functions, are content-related; the latter two, the code format and programming languages, are form-related. An ideal model should rely on the content and be insensitive to form perturbations.

We study two types of prior information: task instructions and function names. In No Instruction, we remove the task instruction from the prompts. In Function Name Perturbation, we replace original function names with anonymous functionX. For example, we replace premise() and hypothesis() in Figure 2 with functionA() and functionB(), respectively. This eliminates the information in function names and only allows models to learn the event relations from programming structures. Examples of information intervened prompts are in Appendix Figure E.1.

The first way to intervene in the programming structure is to convert the conditional structures into sequential structures, referred to as Sequential Structure. The events are executed sequentially, like premise(), hypothesis(), ending() in abductive reasoning. In the second way called Disruption, we randomly disrupt the positions of the functions in the conditional structure—for instance, if hypothesis(): ending() can be disrupted into if ending(): hypothesis(). We also apply the function name perturbation in disruption to eliminate the impact of function names. Examples of structure intervened prompts are in Figure 4.

We test two formats besides the original one: Class and Print. In Class, we convert the original code into a class. We define the programming structure in the __init__ method, and move the event functions into the class. In Print, we represent the content of events as a string and print it in the function body, like def premise(): print(‘‘Scott loved ...’’). Examples of format intervened prompts are in Appendix Figure E.2.

We also convert the original Python programs into two other programming languages, Java and C, to evaluate the influence of programming languages. Specifically, the language conversion is made automatically by Codex with the instruction # python to java/c. Examples of language intervened prompts are in Appendix Figure E.3.

We evaluate the influence of interventions on Llama-2 and Codex. The results on abductive reasoning are in Table 8a, and the results on counterfactual reasoning are in Table 8b.

Generally, the absence of prior information causes a small decrease in results. Models do not rely on the task instruction at the beginning of the prompt. They can learn the relations between events from the code. Even if the instruction or function names are not provided, Codex is able to perform causal reasoning based on conditional statements. Llama-2 suffers from a large drop when function names are not provided in counterfactual reasoning. This indicates that for models with weaker coding abilities, function names provide clues about the event relations. For example, hypothesis_1 and hypothesis_2 are different branches, and hypothesis_1 and ending_1 are related in one branch.

Changes in the programming structure have the largest negative impact among all aspects. Changing the conditional structure to a sequential structure leads the average performance to drop 10% on BLEU and 6% on BERTScore. Comparing Function Name Perturbation and Disruption, the alteration of two characters (swap B and C in functionB and functionC) results in a major drop of 17% BLEU on average. These demonstrate the conditional structure that reasonably depicts that the relations between events is crucial when models perform reasoning.

Compared with information and structure interventions, models are more robust towards format and language interventions. Settings like Print and Java are even better than the original one, revealing that the performance can be further improved with delicate prompt engineering.

In previous sections, we find that code prompts help to elicit the causal reasoning abilities of LLMs, and the programming structure of conditional statements largely contributes to the performance gain. In this section, we are interested in how these observations can aid in model training, answering the following research question:

• RQ4. How can we improve the causal reasoning abilities of LLMs with code data?

Specifically, we collect code corpus of conditional statements, finetune LLMs with the data, and compare their performance on causal reasoning tasks before and after finetuning.

We use an existing code corpus CodeAlpaca-20k (Chaudhary 2023) to construct our finetuning data. CodeAlpaca-20k contains 20,000 instruction-following data used for finetuning Llama-2 into the Code Alpaca model. The data is generated in the style of self-instruct (Wang et al. 2023a) and Alpaca (Taori et al. 2023), with modified prompts and seed tasks focusing on code-related tasks. It is worth noting that the code corpus concentrates on code generation and code editing, and is not directly related to causal reasoning.

To filter data with conditional statements, we ask ChatGPT to determine if the output code of each instance contains conditional statements. The prompt we use is Does the following code contain conditional statements? Conditional statements are programming language commands for handling decisions, for example, if–then(–else) and switch statements. Please output with “yes” or “no” without explanation. And the specific version of ChatGPT is gpt-3.5-turbo-1106. To verify the quality of predictions, we manually check 100 instances, and ChatGPT classifies 96% of them correctly. It misses three instances of one-sided if statements (without else), and hallucinates conditional statements in one instance.

This results in 4,085 instances with conditional statements. We organize the data in the format of ### Instruction: [instruction] ### Output: [output code]. If the instance also contains an input, the input is placed in the prompt after the instruction, as shown in the example of Table 9.

We finetune three 7B models Llama-2, Qwen1.5, and Deepseek-LLM on the filtered data. We train them for one epoch with a batch size of 128. We use the AdamW optimizer with a learning rate of 2e-5 and a warmup rate of 0.03. The max length is set to 512, which covers most of CodeAlpaca data. The hyperparameters batch size, number of epochs, and learning rate are selected with a grid search over the validation set of ART and TimeTravel, with more details in Appendix F.

To disentangle the gains from conditional statements and the gains from broader code corpora, we design a baseline of finetuning models on a uniform sample of CodeAlpaca. The sample size and all the training implementations are the same with the models finetuned on conditional statements.

The performance of models finetuned on the code corpus of conditional statements is shown in Table 10. All three models achieve performance gain on both tasks of abductive reasoning and counterfactual reasoning, indicating the effectiveness of finetuning on code corpus with conditional statements. Although the finetuning data are all code-related, there is consistent gain when models are prompted with text prompts, and the gain is even greater than when prompted with code prompts. This shows that the finetuning process not only enhances the coding abilities of models, but also truly enhances the causal reasoning abilities.

To investigate the trend of performance gain regarding the amount of training data, we control the fraction of training data from 0% to 100%, and evaluate the performance of finetuned models. The results are shown in Figure 5. In general, the performance of the model finetuned on conditional statements exhibits a positive correlation with the amount of training data. The largest performance enhancement is observed from 0% to 20% of training data in most scenarios, indicating that the causal reasoning abilities of models could improve greatly with only a small amount (less than one thousand) of conditional statement codes.

Comparing the models trained on the uniform sample and the conditional statements in Figure 5, we observe that training on code leads to a certain improvement, while training on code with conditional statements leads to further improvement. When prompted with text prompts, models benefit more from code with conditional statements, indicating that the conditional statements enhance the causal reasoning abilities. When prompted with code prompts, the improvements of training on the two corpora are quite close. Although conditional statements positively influence causal reasoning abilities, the narrow distribution of code may harm more general coding abilities, which are also required to understand code prompts. More results of comparing models finetuned on different code corpora are in Appendix G.

We investigate the causal reasoning ability of Code-LLMs and the effectiveness of using code prompts in causal reasoning tasks. We demonstrate that Code-LLMs outperform general-purpose LLMs of the same structures in conducting complex causal reasoning tasks. Compared with text prompts, code prompts prove to be more effective in describing causal structures, improving the performance of a wide range of LLMs. We further analyze the importance of different aspects of code prompts, and find that providing a reasonable causal structure in code can help generate plausible outputs. Based on the observations, we assume that finetuning models on code corpus of conditional statements could improve the causal reasoning capabilities, and verify the hypothesis with experiments. These findings suggest that code, especially the conditional statements in code, could play an important role in eliciting and improving the causal reasoning abilities of LLMs through both prompting and finetuning.

Both datasets of the abductive reasoning and counterfactual reasoning tasks originate from the ROCStories dataset, which is a large crowdsourced corpus of five-sentence stories. The authors of ROCStories control the quality of the dataset by (1) requiring the annotators to pass a qualification test and (2) qualitatively browsing through the submissions and giving the annotators detailed feedback before approving their submissions.

To further verify the quality of the stories, we sample 100 sentences from the two tasks, and recruit native English speakers from Amazon Mechanical Turk to judge whether the sentences are grammatically and semantically acceptable. Each sentence is assigned to three annotators, and 94% of the sentences are accepted.

To explore whether the performance gap between code prompt and text prompt could be caught up by format perturbations towards text prompts, we apply format perturbations towards our text prompts. We randomly sample 10 plausible prompt formats with the method introduced by Sclar et al. (2024), and report the average and best performances on Llama-2.

As shown in Table B.1, the average performance of the text prompts is close to the performance of our original text prompts, and the best performing text prompts still lag behind the code prompts used in our main experiment, letting alone the code prompts that work best in the intervention experiments (Table 8).

Table C.1 shows the annotation instructions provided to the annotators in human evaluation. We recruit three Ph.D. students majoring in Natural Language Processing (NLP) as our annotators, and they are fairly paid at more than $10 per hour.

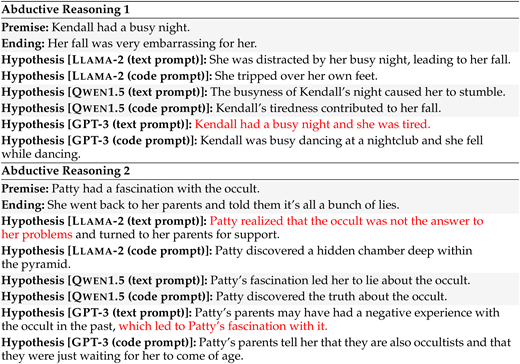

More example cases of model generations are shown in Table D.1 and Table D.2.

We demonstrate prompt examples for the intervention experiments in Section 6. Figure E.1 provides examples of information interventions to code prompts, Figure E.2 provides examples of format interventions, and Figure E.3 provides examples of language interventions.

The finetuning hyperparameters batch size, number of epochs, and learning rate are selected with a grid search over the validation set of ART and TimeTravel. Specifically, we empirically set the search range of {64, 128, 256} for the batch size, from 1 to 5 for the number of epochs, and {1e-5, 2e-5} for the learning rate. We finetune Llama-2 on the code corpus of conditional statements with all the setting combinations, and select the setting with the highest average BERTScore on both datasets with both text and code prompts.

To disentangle the gains from conditional statements and the gains from broader code corpus, we compare the models finetuned on the code corpus of conditional statements with two baselines.

• Uniform: The models are finetuned on a uniform sample of CodeAlpaca.

• Unconditional: The models are finetuned on a sample of CodeAlpaca that excludes all code with conditional statements. This is based on ChatGPT‘s classification of whether the instance contains conditional statements.

The sample size and all the training implementations of the two baselines are the same with the models finetuned on conditional statements.

As shown in Table G.1, we observe that the gains of finetuning on code corpus with conditional statements are greater in most cases, especially when prompted with text prompts. Finetuning on all three code corpora helps models to better understand code, but finetuning on code corpus with conditional statements help models to better improve the causal reasoning abilities, which could be transferred between different prompts.

This work is supported in part by NSFC (62161160339) and Beijing Science and Technology Program (Z231100007423011). We thank the anonymous reviewers and the editors for their helpful suggestions.
